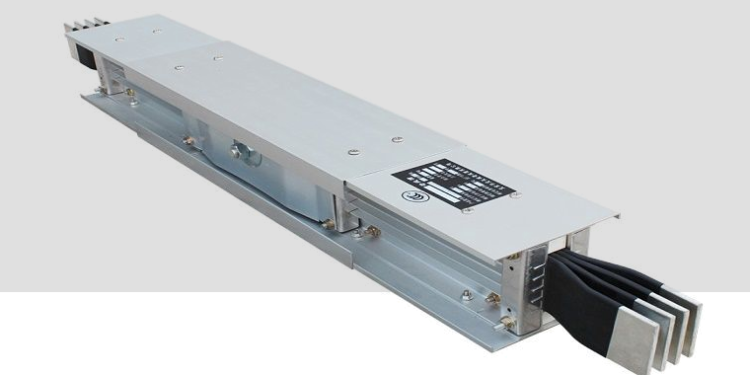

An overview of Busbar Trunking Systems
When wiring commercial or industrial buildings for high-voltage electricity, a Busbar Trunking System (BTS) is the norm, and energy is typically distributed from a central power source to individual loads through busbars, which are essentially metal conductors bars. Busbars are enclosed in metal trunking or conduit and linked to many sets of circuit breakers and distribution panels.
There are various benefits of BTSs over conventional systems. Due to their diminutive stature, they are well-suited for use in cramped quarters. The busbars can be relied on and are safe thanks to the metal switchgear and trunking. For instance, if there is a shift in electricity consumption patterns, the BTS infrastructure may be adjusted rapidly and with no effort. As an added bonus, BTS systems are often easier to establish and operate than conventional power grids.
Advantages of Busbar Trunking System
Busbar trunking is a popular option for distributing electricity because of its many benefits. The following are a few of the most significant benefits:
1) Increased Efficiency:
Distribution of power through busbar trunking systems is more efficient than other methods. Since resistance does not exist in the conductor, no energy is lost.
2) Less Expensive:
When compared to other options, such as buried cables, busbar trunking can be installed for less money. Busbar trunking systems are less expensive to install and maintain than pipe trunking systems.
3) Compact Size:
Compared to traditional methods of delivering electrical power, busbar trunking provides space savings. Starting it and maintaining it is now a breeze.
4) Increased Safety:
A busbar trunking system is much safer than an overhead wire method for distributing electricity. Consequently, there is no risk of fire or electrocution due to a short circuit or leakage current.
5) Increased Flexibility:
The busbar trunking system is flexible, allowing for a wide range of modifications. Because of this, it is optimal for use in environments where power requirements are constantly changing.
6) Fewer Repairs:
A busbar trunking system needs almost no maintenance. This is due to the fact that it requires nothing in the way of maintenance and can withstand all weather conditions with ease (such as humidity and temperature swings).
Components of a Busbar Trunking System
The busbars, the support brackets, and the end caps are the three essential parts of any busbar trunking system. The electrical current flows along the metal busbars, which are held in place by the support brackets, which also serve as a mounting surface. Busbars’ ends are capped with end caps to seal off any potential electrical connections and reduce fire hazards.
Things to Look for in a Bus Bar System
There are a few things to bear in mind when looking for a new bus bar system. It all starts with picking a reliable power supply. An electrical engineer is the one to consult when you need guidance determining the optimal power level for your system. The next step is to verify that your building meets the specifications of the chosen system. Verify that it is compatible with the structure’s current layout. The aesthetics of the system are equally as important as the layout of the system. If and when the system is implemented, it will likely be on public display. Keeping the system looking nice is crucial for this reason.
Conclusion
As a last option, a busbar trunking system offers a safe and effective way to distribute electricity throughout a building. It is crucial to the functioning of modern society that the electricity grid is kept in good working order. Using this strategy not only saves money and frees up desk space but also reduces the number of power lines that need to be installed. You should have a better notion of busbar trunking systems are suited for you after reading our detailed tutorial on them.
